CXO

Categories ,

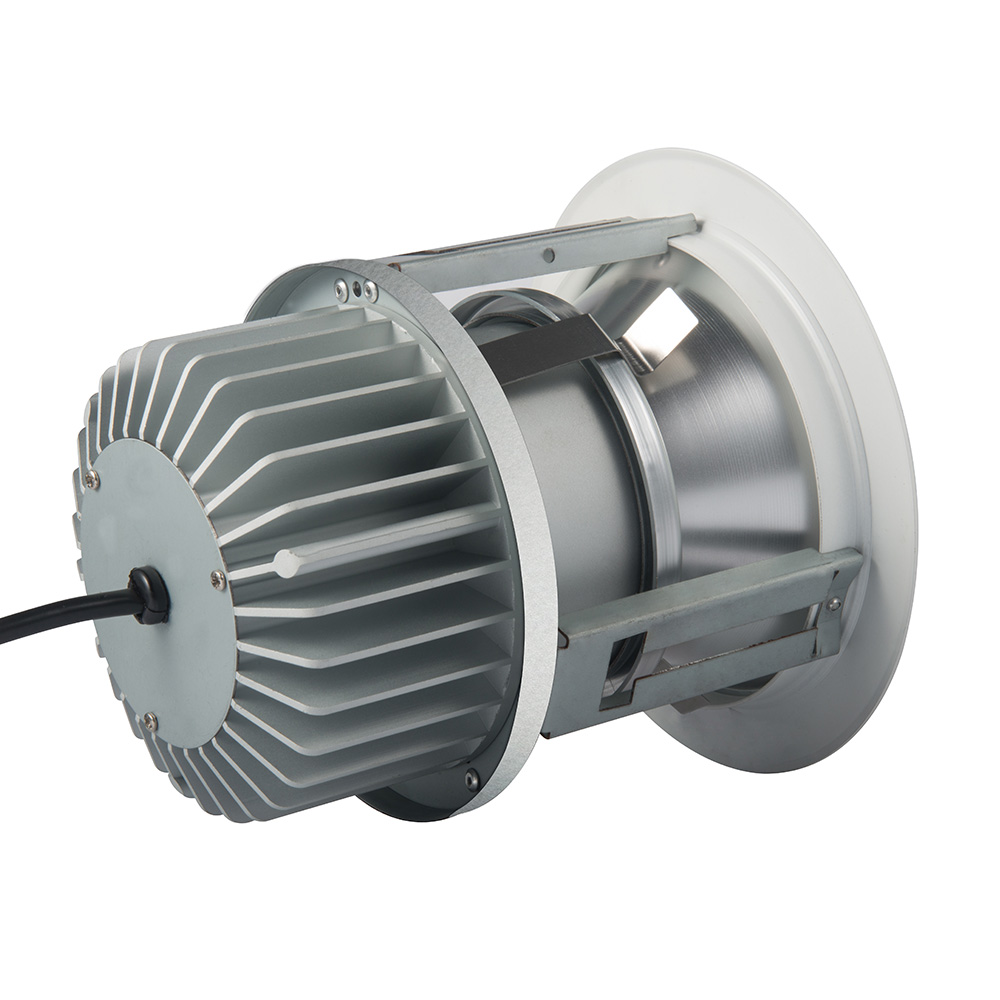

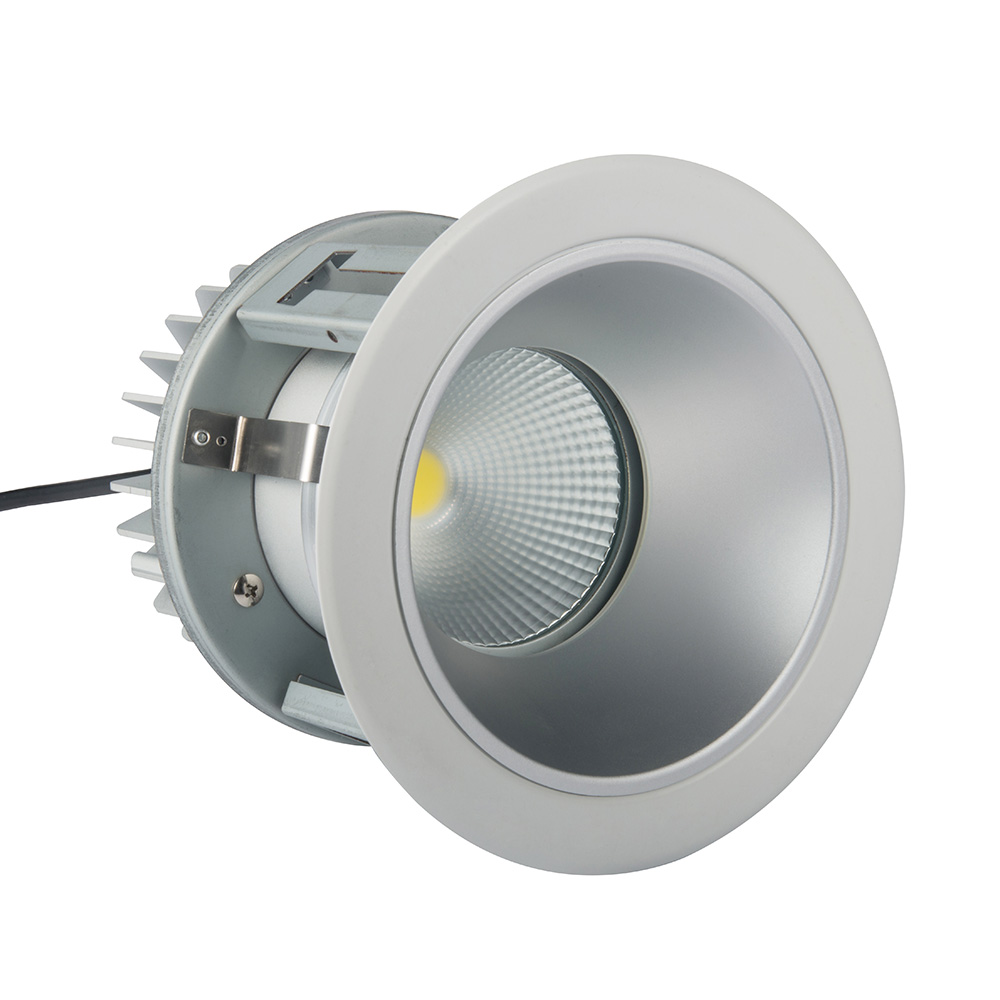

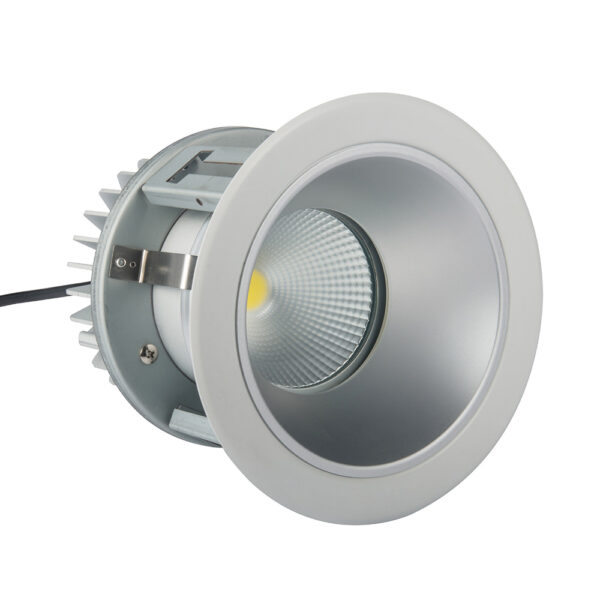

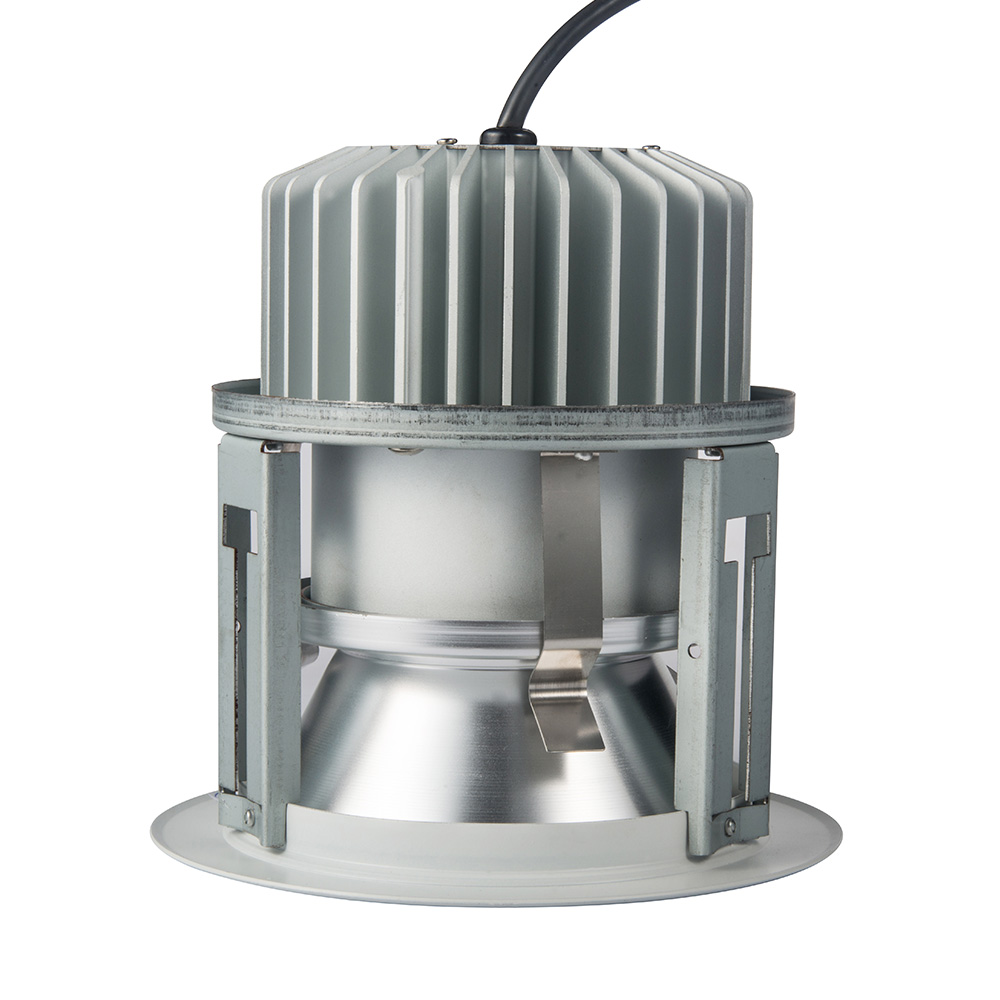

Big Shine LED’s CXO is a fully-equipped down light with a low UGR, providing an anti-glare design that has a diverse range of applications.

CXO is engineered with COB LED technology as well as a pure aluminum heat sink that allows for optimal heat management. With a high thermal conductivity, CXO is an efficient replacement for 200W-250W metal halide and HID down lights.

Specifications

Application

Regulatory & Voluntary Qulifications

  • ETL certified
  • Light Source Engine : LED
  • Driver/Power Unit/Transformer Power Supply Unit Regulating with constant light output
  • Not intended for use in environments containing airborne corrosive agents
  • TM21 results are available upon request

Special Features

Base Type: G13, R1, D7FA8, G16T-5, Rotable Tubes

Field Beam Angles

MODEL

Beam

Beam Angle

9.8 ft

19.7 ft

29.5 ft

BSL-TL18-TBU-BSES-5000K-160

160

160

60.9

15.2

6.8

Technical Specifications

18W

Lumens

2160

Efficacy

120

CRI

80 (5000K)

Voltage Input

100-277V

Voltage Output

36V

Amperage

1

Hertz

50-60 Hz

Total Harmonic Dist.

<25%

Control Options

Non-Dimmable

Operating Temp.

-4~104°F

IP Rating

IP20

IK Level

N/A

Weight

1 lb

Driver Life

50000 hrs

1 LM80 and TM21 results are available upon request.

Specifications are subject to change without notice.

Downloads

Spec Sheets

60W 6″ Spec Sheet   DOWNLOAD
60W 8″ Spec Sheet   DOWNLOAD
100W 10″ Spec Sheet   DOWNLOAD
100W 12″ Spec Sheet   DOWNLOAD

IES Files

BSL-DL60-CX6-MWBL-5000K-60 DOWNLOAD
BSL-DL60-CX8-MWBL-5000K-60 DOWNLOAD
BSL-DL100-CX10-MWBL-5000K-60 DOWNLOAD
BSL-DL100-CX12-MWBL-5000K-60 DOWNLOAD

BSL-TL12-T82-GNES-5000K-120  DOWNLOAD

BSL-TL15-T84-GNSN-5000K-120  DOWNLOAD

BSL-TL18-T84-GNES-5000K-330  DOWNLOAD

Photometric Layouts

*Foot candles vary

Additional information

Beam Angle

18°, 190°, 210°

CRI

90

CCT

2500K-3500K

Efficacy

110 lm/w
